Any quantum system with at least two discrete and sufficiently separated energy level is an appropriate candidate for a qubit. So far the most popular qubits among the experimentalists have been atoms of rubidium (ENS experiments) or berylium (NIST experiments). In an atom, the energy levels of the various electrons are discrete. Two of them can be selected and labelled as logical 0 and 1. These levels correspond to specific excitation states of the electrons in the atom.

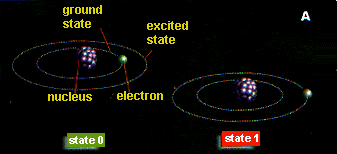

To see how it is possible to control the two logical values,
let us simplify the situation and consider
an idealised atom with a single electron and two energy levels, a ground
state (identified with the value 0) and an excited state (value 1), (cf
Fig.(A) caption).

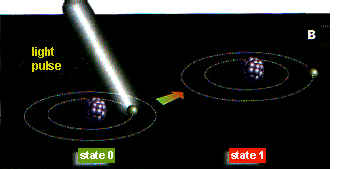

Let us imagine that the atom is initially in state 0 and
that we want to effect the NOT operation. The NOT operation just negates
the logical value so that 0 becomes 1 and 1 becomes 0. This is easily performed
with atoms. By shining a pulse of light of appropriate intensity, duration
and wavelength (the wavelength should match the energy difference between
the two energy levels), it is possible to force the electron to change
energy level. In our case, the electron initially in the ground state will
absorb some energy from the light pulse and transfer itself to the state 1
(cf Fig. (B) caption).
If the electron were initially in the state 1, the light pulse would cause
transfer of the electron to state 0.
Logical NOT, described above, can be understood in completely
classical terms , however, we can also perform purely quantum logical operations

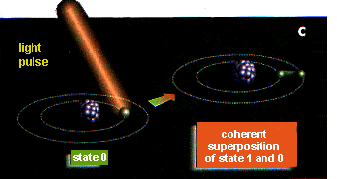

without any classical analogs. For instance, by using a light pulse of
half the duration as the one needed to perform the NOT operation, we effect
a half--flip between the two logical states. What does this mean? In substance,
it means that operation 0 --->1 is only half
performed and that the state of the atom after the half pulse is neither
0 or 1 but a coherent quantum superposition of both states (cf Fig. (C)
caption).
Just like the photon that travels through both A and B routes, the electron
of the
atom ``is'' in both 0 and 1 state. Acting on an atom in that state with
another half pulse of light will complete the NOT operation, and set it
in the 1 state. Because operation NOT is obtained as the result of two
consecutive quantum "half--flips'' this purely quantum operation is often
called the square root of NOT. Using this kind of "half--pulses'', it is
possible to create superpositions of states in the memory of a quantum
computers (a memory would, of course, consist of many atoms), opening thus
new ways to perform computations. Subsequent logical operations usually
involve more complicated physical operations on more than one qubit.
